2005 Yamaha R6 (YZF-R6) Preview


We started out to give the 2005 R6 more horsepower and a new fork, and wound up engineering a nearly new motorcycle.

Staying out front in the Supersport wars takes power:

New camshafts
Bigger throttle bodies
Improved fuel injection
Revised intake funnels

... and more, result in a smoother, fatter powerband with three more horsepower at 13,000 rpm.
To channel that power, a new, fully-adjustable inverted fork with 41mm tubes was added for the most precise handling possible.

It was too good a place to resist mounting powerful new 310mm front disc brakes, radial calipers and a radial master cylinder to even further exploit the R6’s amazing front-end feel.

The added rigidity of the new fork led to a redesign of the main frame to accommodate new rear suspension linkage.

Light weight, razor-sharp handling, unsurpassed overall balance – elevated to the next level.
That's why the R6 was the winner of Motorcycle-USA.com's Supersport Shootout for 2003 and 2004.

Anybody up for a track day?

With back to back Canadian Pro 600 Sport Bike championships to its credit, the 2005 Yamaha R6 is poised for even greater success with a host of important improvements for the 2005 model year. At first glance, the outward appearance of the new R6 may look similar, but looks are deceiving. The improvements have a dramatic effect on engine performance, braking power, handling and stability. The sharp handling and brilliant responsiveness of the R6 have been further enhanced by an all new 41mm inverted front fork and new 70 series front tire, while larger radially mounted brakes will have a significant effect on stopping power. New 40mm throttle bodies and revised fuel injection mapping and ECU settings have increased engine output by 3 horsepower. The upgrades are extremely significant and will become very obvious when the bike is ridden.

Yamaha Canada is pleased to announce that the new 2005 - R6 will come standard with an immobilizer ignition system that significantly reduces the possibility of theft. Yamaha Canada is proud to take the lead role in addressing our customers concerns regarding insurance rates and availability.
Features & Benefits
New for 2005

Engine upgrades in the form of 40mm throttle bodies, revised fuel injection and ignition mapping, new camshafts and intake funnels, etc., all result in a 3-horsepower increase at the same rpm as before with more power across the board.

New, fully adjustable inverted fork with 41mm tubes further reinforces R6’s main strength: precise handling. New, cast top triple clamp and forged lower clamp also increase rigidity, and work with revised handlebar positioning.

To complement the new fork, the rear section of the Deltabox III main frame was revised internally to work with revised swingarm linkage and mounts for improved handling.

Lighter, 310mm front brake discs replace 298mm units. New radial-mount four-piston calipers and radial master cylinder provide greater braking power and feel.

120/70-ZR17 front tire replaces previous 120/60-ZR17 for improved handling.

Twin, ring-type radiator fans are now used to ensure optimal engine cooling.

Revised headlight lens and revised under-cowl for even better style.

delivery and reduced frictional power loss. Sleeveless design also reduces weight.



Engine:

· Lightweight forged pistons feature carburized connecting rods for superb strength and reduced reciprocating mass. The result is incredible engine response.
· Hollow side-driven camshafts with specially designed valve lifters and computer-perfected timing helps create a very narrow engine width.
· Revised competition-bred suction-piston throttle body fuel injection with new, larger 40mm throttle bodies (body diameter is up by 2mm over the 2004 model), features short intake ports and a special vacuum-controlled intake system to ensure instant seamless throttle response all the way up to the incredible 15,500-rpm redline.
· The pressure regulator setting has been increased to accommodate the larger throttle body diameter and the resulting increase in fuel flow.
· New air funnel diameters (39.6 to 41.6mm) to accommodate the larger throttle bodies and revised funnel lengths on cylinders 2 and 3.
· New larger intake manifold to accommodate the larger throttle bodies.
· Ram Air Induction System delivers cool, high-pressure air ''force-fed'' into the intake tract for optimal combustion and greater horsepower at higher speeds.
· Close-ratio 6-speed transmission delivers seamless power delivery and maximum acceleration. Gear widths, splines and engagement dogs are optimized for smoother shifting under power.
· ''Tri-Axis'' or stacked transmission design creates a more compact engine front to back that allows for optimum engine placement in the frame for optimized balanced weight distribution and incredible handling.
· Heavy-duty, large-capacity clutch ensures consistent, fade-free performance.
· Revised cooling system features a curved radiator with new dual ring-type fans for excellent engine cooling efficiency. The ring-type fan offers more airflow than a conventional non-ring type fan.
· Large-capacity internal water pump and separate liquid-cooled oil cooler ensures consistent engine temperatures for maximum performance.
· Direct ignition coils, iridium spark plugs and high-output magneto deliver reliable firing. With this system, the ignition coils are integrated into the plug caps, significantly reducing weight.
· 4-into-2-into-1 exhaust optimizes engine performance, and features a mix of stainless steel, titanium and aluminum to reduce overall weight.
· Revised ECU (electronic control unit) map accommodates the new larger throttle bodies for improved engine performance as well as the new immobilizer ignition system.


Chassis/Suspension:

· Radical, lightweight aluminum Deltabox IlI frame offers the perfect rigidity balance. The result is incredible handling response. The engine is a fully stressed chassis member allowing for a super-light frame design.
· Chassis geometry has been revised for 2005 including; wheelbase (1380 to 1385mm), caster angle (24 to 24.5 degrees) and trail (86 to 95mm) have been changed for 2005.
· Yamaha's exclusive Controlled Filling Die Casting (CF casting) is used to produce an incredibly sleek new swingarm that is remarkably strong and light by pinpointing exactly where material needs to be. Pivot position and swingarm length (576mm) are optimized for even greater traction.
· Removable aluminum rear subframe uses CF casting technology to provide lighter weight and fewer welds as well.
· All new, fully adjustable 41mm Kayaba inverted front fork offers 120mm (4.7'') of wheel travel. The new inverted forks offer incredible suspension performance with ultra-precise feedback. Adjustments include; 8 positions of spring preload, 13-way compression damping and 10-way rebound damping. The inverted design not only reduces unsprung weight but also increases the rigidity of the fork assembly.
· Revised fully adjustable Monocross link rear suspension utilizes a piggyback-style shock providing 120mm (4.7'') of wheel travel. The shock settings have been revised to maintain the ''suspension balance'' with the new inverted fork. Adjustments include: 8 positions of spring preload, 20-way compression damping and 16-way rebound damping.
· The relay arms of the rear link-type suspension have been modified to match the new fork and to enhance suspension performance. The seat height of the new 2005 R6 has been increased by 10mm (0.4'') due to the changes in the suspension.
· All new radial mount, 4-piston calipers squeeze new larger 310mm dual front disc brakes. The new mounting system helps to reduce caliper distortion for improved braking performance with excellent control and lever feedback. The larger 310mm discs are 4.5mm thick thereby reducing overall disc weight by 7%.
· Brembo radial pump master cylinder is a direct GP race innovation. The radial design allows for more powerful braking and improved lever feedback. The new shorter lever is adjustable for various hand sizes.
· 220mm rear disc brake with single-piston caliper
· Lightweight five-spoke 17'' wheels reduce unsprung weight by making hub and spokes a single structural unit. A special casting technique makes the rim section substantially lighter and stronger.
· All new 120/70ZR17 Dunlop D218 front tire. The change in tire profile provides improved handling performance. The 2004 model used a 60 series profile front tire.
· All new immobilizer ignition system is designed to reduce the possibility of theft. This new system must recognize the ''coded ignition key'' in order for the unit to start. If the immobilizer ignition does not recognize the key (or a theft's screwdriver or other type of ''jimmy tool'') the bike will not start even if the ignition is turned or forced into the on position. If the system does not recognize the correct coded ignition key, it will not allow the unit to start.
· Ultra-sleek ''new edge form'' bodywork features a sharp front profile with centrally located Ram Air duct, engine-revealing side cowlings and ultra-sleek tail section.
· Narrow 17-litre fuel tank provides excellent rider ergonomics and aggressive seating position.
· Dual Gatling beam 60/55-watt multi-reflector headlights cast a wide beam of light and feature a sleek profile for superb aerodynamics and visibility. The lens has been revised above the Ram-Air intake area for improved appearance.
· Twin LED taillights reduce both weight and size while providing excellent visibility.
· Multi-function digital and analog instrumentation with adjustable LED illumination features: digital speedometer, dual tripmeters, fuel tripmeter, clock and analog tach. There is also a programmable shift light too!


Details:

· Durable, lightweight, aluminum clip-on bars provide optimal vibration damping
· Premium Dunlop D208 radial tires
· 5-position adjustable front brake lever
· O-ring chain
· Steering lock
· Under seat helmet holder
· Fold-out bungee cord straps under seat


Additional Features:

Durable, lightweight, aluminum clip-on bars provide optimal vibration damping

Narrow 4.5-gallon fuel tank provides excellent rider ergonomics and aggressive seating position.

Multi-function digital and analog instrumentation features: digital speedometer, analog tachometer, dual tripmeters with odometer, upward-counting fuel reserve meter, water temp gauge and lights for neutral, high beam, low fuel and turn signals.

Dual Gatling beam 60/55-watt multi-reflector headlight features a sleek profile for superb aerodynamics and visibility.

Dual LED taillight design reduces both weight and size while providing excellent visibility and a sleek profile.

Standard toolkit located in convenient storage compartment under passenger seat.

Specifications:

MSRP
$8,399 (Blue; Red)
$8,499 (Raven) All available from November 2004

Engine

Type
600cc, Liquid cooled, 4-stroke, forward inclined inline 4 cylinder, DOHC, 16 valves

Bore x Stroke
65.5 x 44.5mm

Compression Ratio
12.4 1

Carburetion
Fuel Injection

Ignition
Digital DC-CDI

Transmission
6-speed w/multi-plate clutch

Final Drive
#530O-ring chain

Chassis

Suspension/Front
41mm inverted telescopic fork w/adjustable preload, compression and rebound damping; 4.7" travel

Suspension/Rear
Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 4.7" travel

Brakes/Front
Dual 310mm floating discs w/radial mount, forged 4-piston calipers

Brakes/Rear
220mm disc w/ single-piston caliper

Tires/Front
120/70-ZR17

Tires/Rear
180-55-ZR17

Dimensions

Length
80.5"

Width
27.1"

Height
43.5"

Seat Height
32.3"

Wheelbase
54.3"

Rake (Caster Angle)
24.5°

Trail
3.7"

Fuel Capacity
4.5 gallons

Oil Capacity (with oil filter change)
2.85 Qt.

Dry Weight
357 lbs.

Primary Reduction Ratio
86/44 (1.955)

Secondary Reduction Ratio
48/16 (3.000)

Gear Ratio - 1st Gear
37/13 (2.846)

Gear Ratio - 2nd Gear
28/18 (1.556)

Gear Ratio - 3rd Gear
28/18 (1.556)

Gear Ratio - 4th Gear
32/24 (1.333)

Gear Ratio - 5th Gear
25/21 (1.190)

Gear Ratio - 6th Gear
26/24 (1.083)

Source :www.totalmotorcycle.com

Yamaha's YZF-R6 gets zero changes for 2007

R6 gets new colour shock! Hardly big news but we thought you'd like to know as the "midnight" black option looks pretty cool. Other 2007 colour options remain the same; white and blue with a colour matched racing seat cowl. As if the R6 wasn't value enough, like all Yamaha motorcycles it's supplied with a two year warranty and 1 year RAC cover.

The YZF-R6 will again be showcased in the Virgin R6 Cup supporting the British Superbike championship. In 2007 a Virgin team also bursts onto the British Supersport championship scene with R6 Cup winners Billy McConnell (2005) and Tom Grant (2006) aboard.

The new road bikes should be in shops near you right now priced £7,499 here in the UK. To find your nearest official Yamaha dealer call 01932 358121 or visit www.yamaha-motor.co.uk

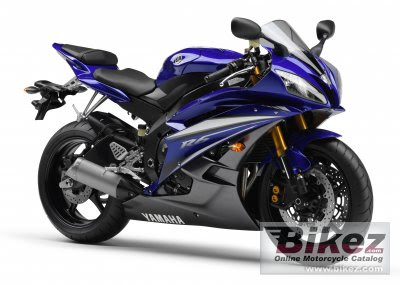

Yamaha R6 2007 Preview

2007 Yamaha R6 Stats

MSRP* $9,299 (Team Yamaha Blue)
$9,399 (Charcoal Silver)
$9,399 (Candy Red Yamaha R6)
Engine
Type 599cc liquid-cooled inline 4-cylinder; DOHC, 16 titanium valves
Bore x Stroke 67.0 x 42.5mm
Compression Ratio 12.8:1
Carburetion Fuel injection with YCC-T
Ignition TCI
Transmission 6-speed w/multi-plate slipper clutch
Final Drive #525 O-ring chain

Chassis
Suspension/Front 41mm inverted fork; 4-way adjustable, 4.7-in travel
Suspension/Rear Single shock; 4-way adjustable, 4.7-in travel
Brakes/Front Dual 310mm floating disc; radial-mount 4-piston calipers
Brakes/Rear 220mm disc; single-piston caliper
Tires/Front 120/70-ZR17
Tires/Rear 180/55-ZR17
Dimensions
Length 80.3 in
Width 27.6 in
Height 43.3 in
Seat Height 33.5 in
Wheelbase 54.3 in
Rake (Caster Angle) 24°
Trail 3.8 in
Fuel Capacity 4.6 gal
Oil Capacity (with oil filter change) 3.59 qt
Dry Weight 357 lb
Other
Main Jet Not Applicable
Main Air Jet Not Applicable
Jet Needle Not Applicable
Needle Jet Not Applicable
Pilot Air Jet 1 Not Applicable
Pilot Outlet Not Applicable
Pilot Jet Not Applicable
Primary Reduction Ratio 85/41 (2.0731)
Secondary Reduction Ratio 45/16 (2.8125)
Gear Ratio - 1st Gear 31/12 (2.583)
Gear Ratio - 2nd Gear 32/16 (2.000)
Gear Ratio - 3rd Gear 30/18 (1.667)
Gear Ratio - 4th Gear 26/18 (1.444)
Gear Ratio - 5th Gear 27/21 (1.286)
Gear Ratio - 6th Gear 23/20 (1.150)
Warranty 1 Year (Limited Factory Warranty)

Yamaha R6 2008 Review



2008 Yamaha R6 Stats

MSRP* $9,799 (Cadmium Yellow w/Flames) Available from December 2007
$9,599 (Team Yamaha Blue/White) Available from November 2007
$9,599 (Raven) Available from November 2007
$9,599 (Liquid Silver) Available from November 2007
Engine
Type 599cc liquid-cooled inline 4-cylinder; DOHC, 16 titanium valves
Bore x Stroke 67.0 x 42.5mm
Compression Ratio 13.1:1
Carburetion Fuel Injection with YCC-T and YCC-I
Ignition TCI
Transmission 6-speed w/multi-plate slipper clutch
Final Drive #525 O-ring chain
Chassis
Suspension/Front 41mm inverted fork; 4-way adjustable, 4.7-in travel
Suspension/Rear Single shock; 4-way adjustable, 4.7-in travel
Brakes/Front Dual 310mm floating disc; radial-mount 4-piston calipers
Brakes/Rear 220mm disc; single-piston caliper
Tires/Front 120/70-ZR17
Tires/Rear 180/55-ZR17
Dimensions

Length 80.3 in
Width 27.6 in
Height 43.3 in
Seat Height 33.5 in
Wheelbase 54.3 in
Rake (Caster Angle) 24°
Trail 3.8 in
Fuel Capacity 4.6 gal
Oil Capacity (with oil filter change) Spec Not Available
Dry Weight 366 lb

Jumat, 27 Februari 2009

Ninja 250R White Color

Kawasaki Ninja 250R 2008




Kawasaki Ninja 250R 2008 Picture....

Rabu, 18 Februari 2009

Honda CBR 150R, 1255cc Coming Soon in Malaysia




With fuel prices expected to go up in the next election, many will be looking at ways to reduce fuel expenditure. While Ratan Tata wants to convert motorcyclists into car drivers with the Tata Nano, there is no such thing here yet and for those who are already driving cars with small engines, the only way is to go down and replace the transportation method of certain short commutes with a bike instead of a car. I myself have purchased an old 2nd hand Kawasaki Victor for this purpose.

One of the latest “hot” yet relatively affordable sports bikes in the Malaysian market is the Honda CBR150R, brought in officially by Boon Siew Honda Malaysia and it costs RM10,363.17 on the road including insurance. The Honda CBR150R is powered by a 150cc (149.4cc) 4-stroke carburetted single cylinder 4 valve DOHC engine with 11.0:1 compression and CDI ignition, mated to a 6-speed wet clutch manual transmission. It produces 18.98 PS at 10,500rpm and 13.5Nm of torque at 8.500rpm.

The engine is water cooled with an electric fan that turns on automatically when needed. The bike has a 10 liter fuel tank which will cost RM19.20 to fill up at current RON97 fuel prices. Front suspension uses telescopic shocks while the rear is a monoshock. The meter panel has a speedometer, an RPM meter, a fuel gauge and a temperature meter. Brakes are discs at both the front and rear, sized 276mm and 220mm respectively.
http://paultan.org/

Honda CBR 150R, 2007 Specifications

Specifications :
◘ Model: Honda CBR 150R
◘ Year: 2007
◘ Category: Sport
◘ Rating: 72.3 out of 100
◘ Engine and transmission
◘ Displacement: 149.40 ccm (9.12 cubic inches)
◘ Engine type: Single cylinder
◘ Stroke: 4
◘ Power: 17.00 HP (12.4 kW))
◘ Compression: 11.0:1
◘ Bore x stroke: 63.5 x 47.2 mm (2.5 x 1.9 inches)
◘ Fuel system: Carburettor
◘ Valves per cylinder: 4
◘ Fuel control: DOHC
◘ Ignition: CDI Direct System
◘ Starter: Electric
◘ Lubrication system: Wet sump
◘ Cooling system: Liquid
◘ Gearbox: 6-speed
◘ Transmission type
◘ final drive: Chain
◘ Clutch: Wet Multiple Disk

Physical measures :
◘ Dry weight: 115.0 kg (253.5 pounds)
◘ Seat height: 776 mm (30.6 inches)
◘ Overall height: 1 mm (0.0 inches)
◘ Overall length: 1 mm (0.0 inches)
◘ Overall width: 652 mm (25.7 inches)
◘ Ground clearance: 172 mm (6.8 inches)
◘ Wheelbase: 1 mm (0.0 inches)


Chassis and dimensions :
◘ Frame type: Aluminum Frame
◘ Front suspension: Telescopic forks
◘ Rear suspension: Monoshock
◘ Rear suspension travel: 120 mm (4.7 inches)
◘ Front brakes: Single disc. 2-piston caliper
◘ Front brakes diameter: 276 mm (10.9 inches)
◘ Rear brakes: Single disc. 2-piston caliper
◘ Rear brakes diameter: 220 mm (8.7 inches)
◘ Exhaust system: Painted black steel pipe and chrome coated muffler

Speed and acceleration :
◘ Top speed: 160.0 km/h (99.4 mph)
◘ Power/weight ratio: 0.1478 HP/kg

Honbda CBR 150, 2009 Review and Picture

Review and Pictures :
Honda plans to launch their CBR 150 before mid 2009, It’s going to be a 4 stroke 150cc bike with a top speed of around 155 kmph, acceleration 0 - 60 in approx 3 seconds. . .and thats surely a hot news for Honda Fan’s.


Selasa, 17 Februari 2009

Modifikasi Tangki Airbrush

Airbrush is a kind of art motor modifications, there are so many types of airbrush are now. Air brush this under the airbrush on motorcycle tanks, if not any type of motor is Harley Davidson.

Airbrushed Motorcycle Tank Art :
















Kamis, 05 Februari 2009

Honda CBR1000rr Gallery

Honda CBR1000rr Pictures





Rabu, 04 Februari 2009

Best Motorcycle of Bimota 2007 DB5 1100





Specification :
Engine: Ducati L-manner 2-cylinder, 4 stroke, 4 valve, 1098 cc
Power: / 1.36 Kw (95 hp) 8500 Traffic in a minute
Rama: spatial frame of steel hrom-molibdenovoy
Maximum speed: more than 250 km / h.
Main channel: Chain
Weight: 156 kg
Fuel tank: 19 liter (including a reserve of 5 l)
Finishing carbon: No
Number speeds: 6

Selasa, 03 Februari 2009

Best Motorcycle of BMW 2007 K 1200 S





Specification :
Engine: 4 cylinder, 4 stroke, 16 valves, 1157 cc
Power: 125 Kw (167 hp) 10250 in a minute
Rama: Aluminum
Cooling: Liquid
Maximum speed: more than 200 km / h.
Main channel: Chain
Weight: 227.5 kg
Fuel tank: 19 liter (including a reserve of 4 l)
Finishing carbon: No
Number speeds: 6

Best Motorcycle of Aprilia 2007 RSV 1000 R FACTORY





Specification :
Engine: V- manner (corner of a 60 °, magnesium alloy) 4 valve per cylinder, 4 stroke, 997.62 cc
Power: 102 Kw (143 hp) at 9500 in a minute
Rama: Box duhbalochnaya aluminum alloy
Cooling: Liquid
Maximum speed: 299 km / h
Main channel: Chain
Weight: 185 kg
Fuel tank: 18 liter (including a reserve of 4 l)
Finishing carbon: There
Number speeds: 6

LinkWithin
